Max Power
500W
Scan Mode
Dual Axis - 8 scan patterns
Heavy-Duty Lift Rings
Simplifying transport and mobility
Cooling System
Water Cooled / Refrigerated Chiller

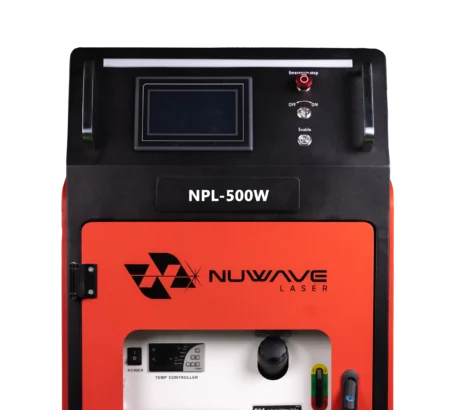

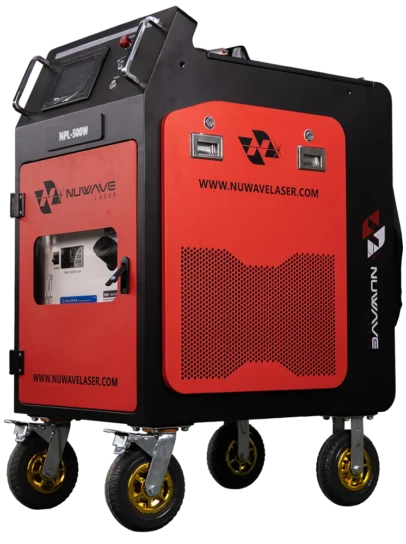

500W Pulse Wave
Laser Cleaning Machine
The 500W Pulse Wave Laser Cleaning Machine delivers advanced industrial cleaning with unmatched precision and safety. Designed for a wide range of applications, it effectively removes rust, paint, coatings, and contaminants across industries such as aerospace, automotive, and construction. Its intuitive interface, lightweight cleaning head, and multiple scan modes ensure user-friendly operation and adaptability for complex surfaces. This system is built for demanding environments and consistent performance.
Machine Specifications
| Max Power | 500W |
|---|---|
| Laser Safety Class | Class IV |
| Wavelength | 1064 nm |
| Laser Type | Pulse Wave - Top Hat |
| Single Pulse Energy | 15 mj |
| Scan Mode | Dual Axis - 8 scan patterns |
| Max Scan Width | 110 mm / 4.3 in |
| Cable Length | 10 m / 32.8 ft |
| Equipment Weight | 175 kg / 386 lbs |
| Equipment Dimensions | L: 38” x W: 30” x H: 44” |
|---|---|
| Operating Temperature | 0-40 °C / 32-104 °F |
| Power Requirements | 220 VAC ± 10%, 1-PH, 60 Hz |
| Power Consumption | ≤5 kW @ 23 A @ 25 °C / 77 °F |
| Supply Air Pressure | 60-85 psi, clean compressed air or Nitrogen |
| Cooling System | Water Cooled / Refrigerated Chiller |
| External Control | Remote Capable |
| Safety Features | Double Activation, Enable Button, Emergency Stop |
Compatible Materials
-
Aluminum
-
Adhesive Residues
-
Brick
-
Brass
-
Carbon Fiber
-
Cast Iron
-
Ceramics
-
Concrete
-
Copper
-
Fiberglass
-
Iron (Steel, CarbonbSteel, Stainless Steel)
-
Limestone
-
Metal Alloys
-
Metal Oxide Layers
-
Mold Cleaning
-
Mold Remediation
-
Moss, Algae, and Biofilms
-
Nickel
-

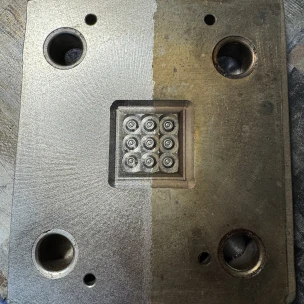

Oil and Grease Residues
-
Paint & Coatings
-
Plastics
-
Stone
-
Titanium
-

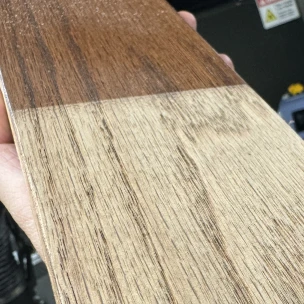

Wood
-
Zinc
Serious Power. Real Efficiency.
Our 500W Pulse Wave Laser is built to handle heavy-duty cleaning with speed, precision, and minimal downtime. See how it protects your assets and your bottom line.
Precision Prep at the Speed of Light

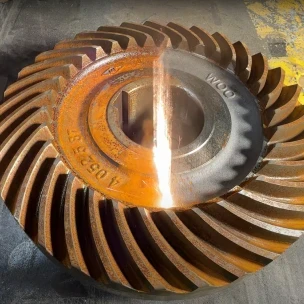

Watch the 500W Pulse Laser transform surface preparation into a fast, precise, and mess-free process. See how its intense yet controlled pulses remove rust, paint, and contaminants with ease, leaving a perfectly clean, ready-to-work surface. No grinding, no chemicals, and no damage, just powerful, efficient laser technology designed to save you time and deliver flawless results every time.

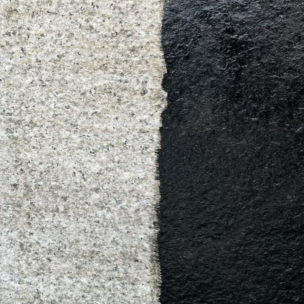

Pulse Power vs. Paint Layers
Experience the sheer power of industrial pulse wave laser technology as it blasts through thick layers of paint with stunning precision. This video shows how the laser strips away even the most stubborn coatings, without chemicals, contact, or damage, leaving behind a clean surface. It’s fast, efficient, and built for the toughest jobs in manufacturing, restoration, and beyond!
The Power of Light In Your Hands
Achieve Superior Results Across Diverse Applications
Laser technology offers an incredibly versatile, non-abrasive, and environmentally-friendly way to handle a a wide variety of surface prep and industrial cleaning needs.
APPLICATIONS ACROSS INDUSTRIES
Built Strong for Heavy-Duty Applications
The 500W Pulse Wave Laser Cleaner is engineered to meet real-world demands, delivering powerful yet precise surface cleaning across various industries. From rust and paint to coatings and contaminants, it removes buildup efficiently and effectively, keeping operations running smoothly.
Aerospace
Removes rust, grease, and coatings from sensitive components while preparing surfaces for inspection and Non-Destructive Testing.
Learn More
Art & Heritage
Laser cleaning preserves historic surfaces by removing contaminants like soot, graffiti, and biofilm without abrasive methods or harsh chemicals.
Learn More

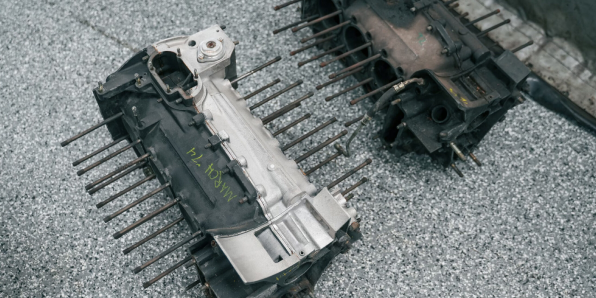

Automotive
Laser cleaning restores automotive parts by removing rust, grease, and coatings without harsh chemicals or abrasion. Ideal for restorations and precision detailing.
