Faster Welding
Up to 10× faster weld speeds than TIG or MIG with minimal prep or post-grind.
Industrial Performance
Engineered for continuous, round-the-clock operation with consistent quality.
Advanced Cooling
Dual-circuit refrigerant cooling system prevents overheating and downtime.
Precision Control
The lightweight, well-balanced torch and smooth wire-feed system make it easier to achieve consistent, professional results.

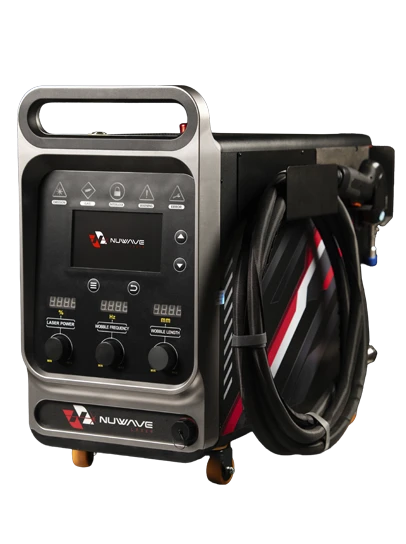

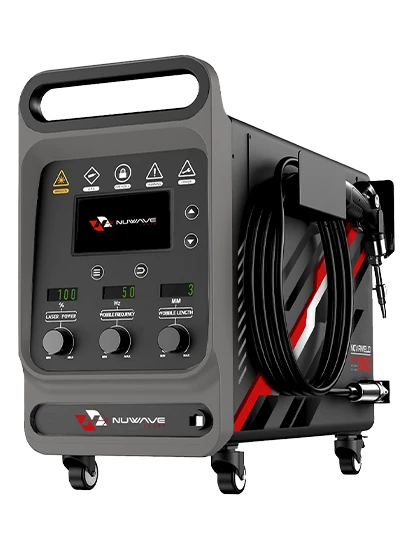

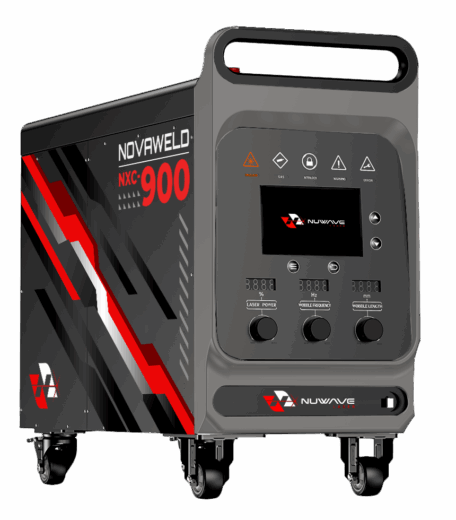

NOVAWELD 900W
Laser Welding Machine
The NOVAWELD Core Series delivers precision laser welding at mid-range power levels, ideal for shops looking for a balance of versatility and efficiency. These models are perfect for detailed welding tasks and smaller production environments.
Machine Specifications
| Laser Power | 900W |
|---|---|
| Power Consumption | 3.25kW/h |
| Rated Input Power Supply | Single phase 220V |
| Input Power Frequency | 50/60Hz |
| Fiber Laser Diameter | 30m |
| Wobble Length | 0-6mm |
| Cooling | Dual-circuit refrigerant direct cooling |
| Equipment Weight | 39 KG / 86 lbs |
| Equipment Dimensions | L: 27” x W: 23” x H: 12” |
|---|---|
| Working Temperature | -30-60 °C / -22-140 °F |
| Storage Temperature | -40-70 °C / -40-158 °F |
| Working Humidity | 0-90% |
| Applicable Wire Diameter | 0.8/1.0/1.2/1.6/2.0/2.5mm |
| Wire Feedermode | Single/double wire feeding |
| Process Gas | Argon, Nitrogen, Helium, Compressed air |
| Safety Features | Includes key switch, dual-step trigger, safety circuit, and door interlock. |
Compatible Materials
| Aluminum | ＜2.5mm |
|---|---|
| Stainless Steel | ＜3mm |
| Carbon Steel | ＜3mm |
| Galvanized Sheet | ＜3mm |
|---|---|
| Brass | ＜3mm |
| Copper | ＜0.5mm |
