["NOVAWELD","Titan","Series","2000W"]NOVAWELD
Faster Welding
Up to 10× faster weld speeds than TIG or MIG with minimal prep or post-grind.
Industrial Performance
Engineered for continuous, round-the-clock operation with consistent quality.
Advanced Cooling
Dual-circuit refrigerant cooling system prevents overheating and downtime.
Precision Control
The lightweight, well-balanced torch and smooth wire-feed system make it easier to achieve consistent, professional results.

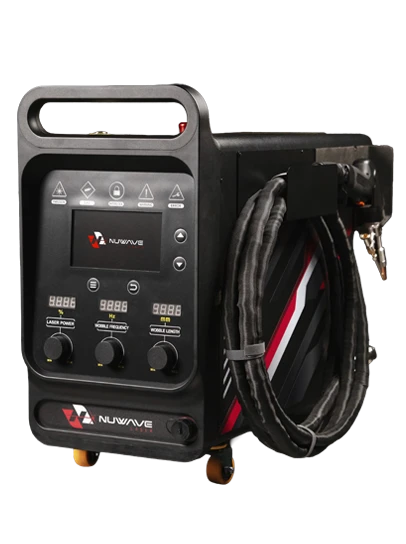

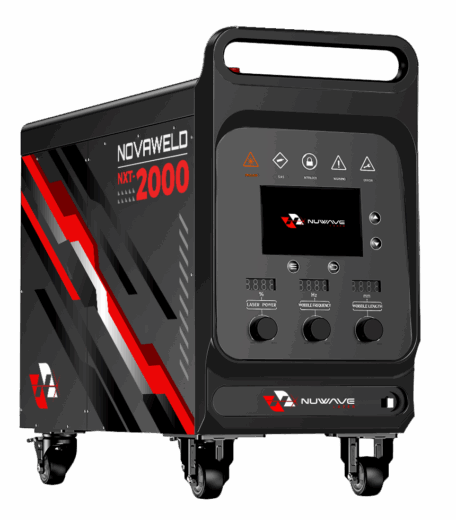

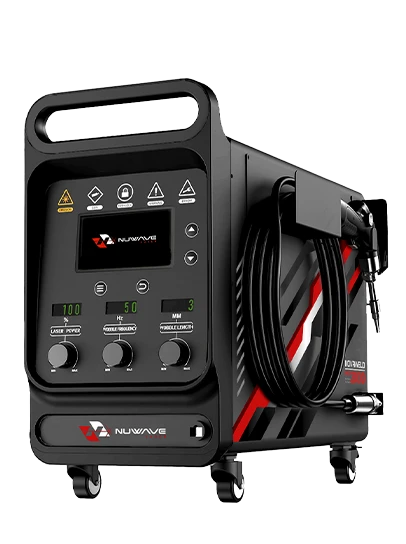

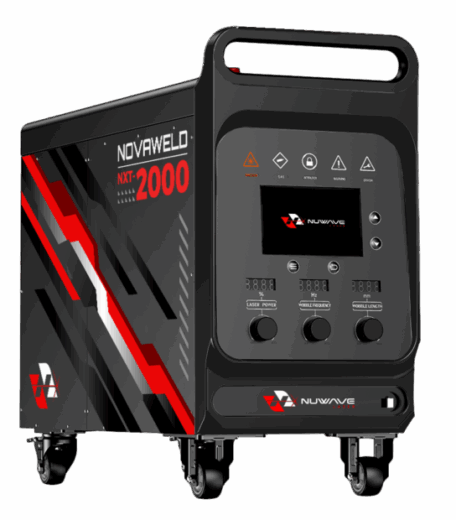

NOVAWELD 2000W
Laser Welding Machine
Built for demanding production environments, the NOVAWELD Titan Series 2000W delivers powerful laser welding performance. Designed for speed, precision, and deep penetration, these industrial-duty systems handle thicker materials and extended shifts with ease. The Titan Series combines exceptional weld quality with efficiency, making it the ideal solution for high-volume fabrication and heavy-duty applications.
Machine Specifications
| Laser Power | 2000W |
|---|---|
| Power Consumption | 7kW/h |
| Rated Input Power Supply | Single phase 220V |
| Input Power Frequency | 50/60Hz |
| Fiber Laser Diameter | 14m |
| Wobble Length | 0-6mm |
| Cooling | Dual-circuit refrigerant direct cooling |
| Equipment Weight | 45 KG / 99 lbs |
| Equipment Dimensions | L: 27” x W: 24” x H: 12” |
|---|---|
| Working Temperature | -20-60 °C / -4-140 °F |
| Storage Temperature | -30-70 °C / -22-158 °F |
| Working Humidity | 0-90% |
| Applicable Wire Diameter | 0.8/1.0/1.2/1.6/2.0/2.5mm |
| Wire Feedermode | Single/double wire feeding |
| Process Gas | Argon, Nitrogen, Helium, Compressed air |
| Safety Features | Includes key switch, dual-step trigger, safety circuit, and door interlock. |
Compatible Materials
| Aluminum | ＜6mm |
|---|---|
| Stainless Steel | ＜7mm |
| Carbon Steel | ＜7mm |
| Galvanized Sheet | ＜7mm |
|---|---|
| Brass | ＜7mm |
| Copper | ＜2.5mm |
